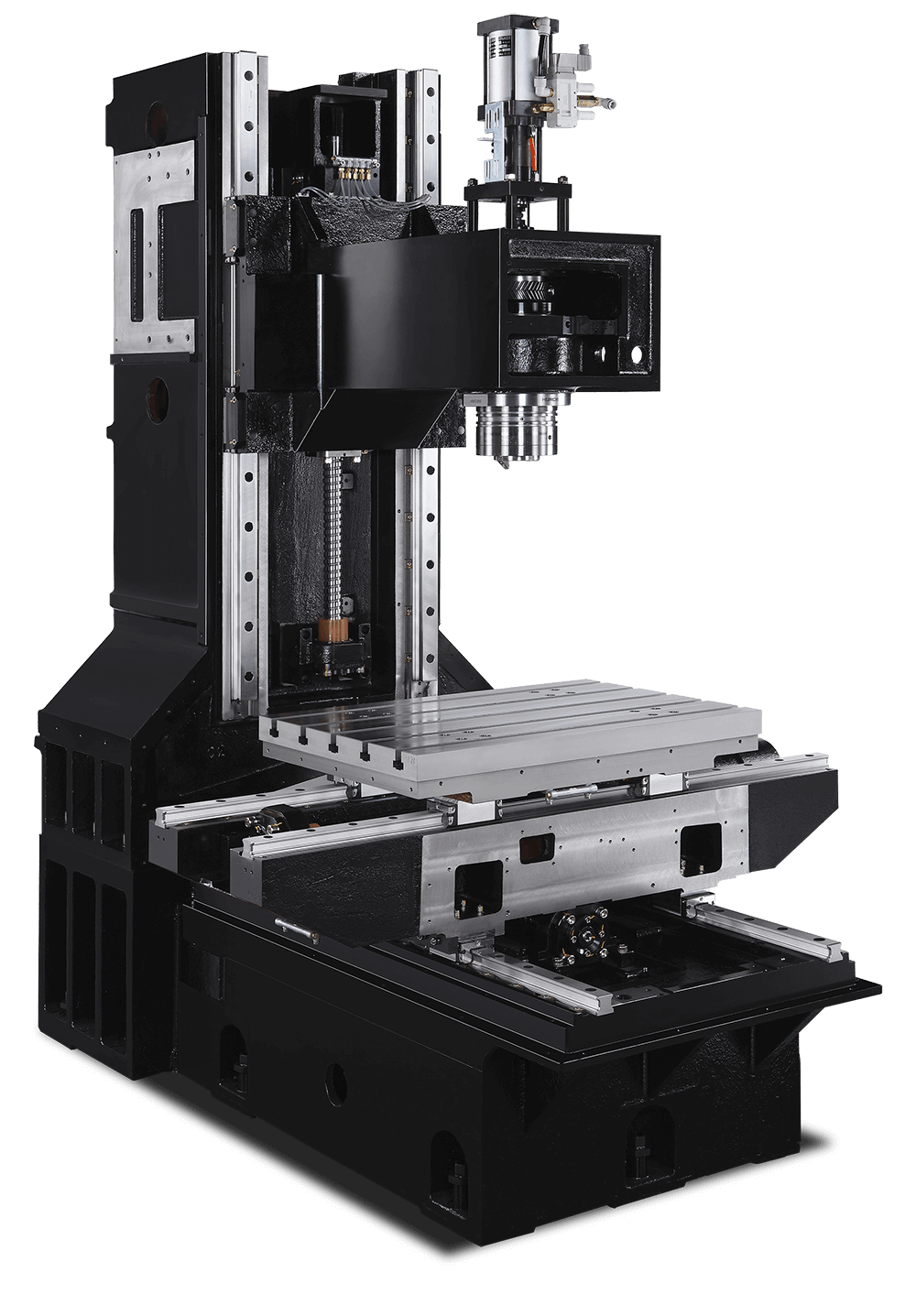

VMX 24 i

3-Axis-Machining Centers

Big capabilities in a small package.

VMX 24 i VMX 24 i

Facts and figures

Table

Spindle nose – table (mm) 152 - 762
Table working surface W x D (mm) 760 x 510
T-Slots (DIN 650) 5 x 18 H8 x 100
Load max. (uniform distribution) (kg) 1.360

Travels

X-Axis (mm) 610
Y-Axis (mm) 508
Z-Axis (mm) 610

Spindle

Spindle Taper (DIN 69871) SK 40
Spindle Speed max. (rpm) 12.000
Spindle Power (kW) 9
Spindle Torque max. (Nm) 143


Feedrates

Rapid traverse X/Y/Z-Axis (m/min) 38 / 38 / 32

Automatic Tool Changer

Number of stations 30
Tool diameter max. (mm) 80
Tool length max. (mm) 300
Tool weight max. (kg) 7

Further details

Floor space required (mm) doors open, incl. control unit and chip conveyor 3.930 x 4.046 x 2.710
Machine weight (kg) 4.750
Content coolant tank (l) 367
Scraper type chip conveyor Standard

Information may change without notice. Optimum machine performance is reliant upon installation conditions at the facility, such as power supply, air supply, and ambient air conditions.
