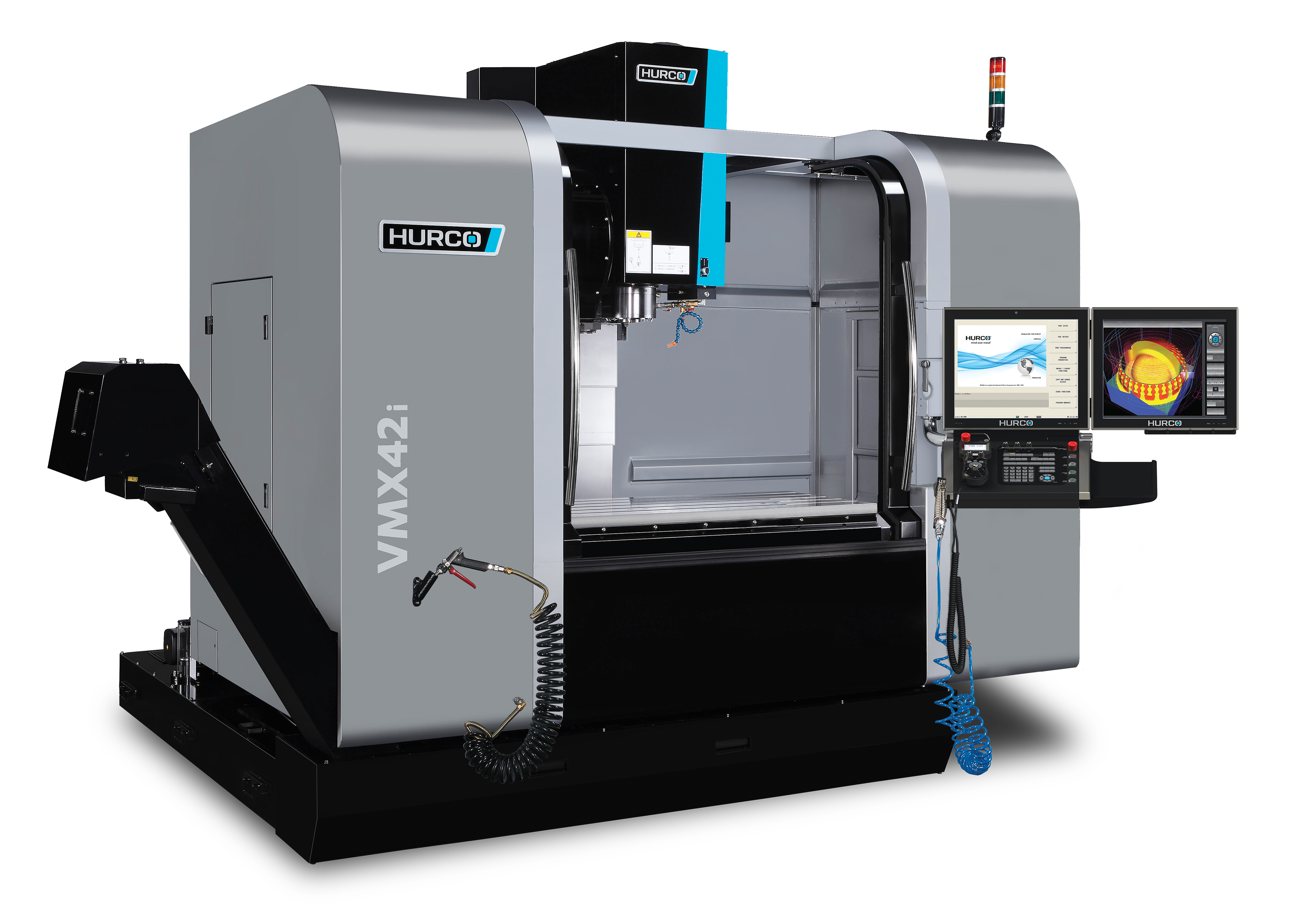

VMX 42 i

3-Axis-Machining Centers

The CNC workhorse for high performance and flexibility.

VMX 42 i VMX 42 i

Facts and figures

Table

Spindle nose – table (mm) 152 - 762
Table working surface W x D (mm) 1.270 x 610
T-Slots (DIN 650) 5 x 18 H8 x 100
Load max. (uniform distribution) (kg) 1.360

Travels

X-Axis (mm) 1.067
Y-Axis (mm) 610
Z-Axis (mm) 610

Spindle

Spindle Taper (DIN 69871 A) SK40
Spindle Speed max. (rpm) 12.000
Spindle Power (kW) 18
Spindle Torque max. (Nm) 237


Feedrates

Rapid traverse X/Y/Z-Axis (m/min) 38 / 38 / 32

Automatic Tool Changer

Number of stations 30 / 40
Tool diameter max. (mm) 80 / 76
Tool length max. (mm) 300
Tool weight max. (kg) 7

Further details

Floor space required (mm) doors open, incl. control unit and chip conveyor 4.572 x 3.713 x 2.920
Machine weight (kg) 6.809
Content coolant tank (l) 484
Scraper type chip conveyor Standard

Information may change without notice. Optimum machine performance is reliant upon installation conditions at the facility, such as power supply, air supply, and ambient air conditions.
