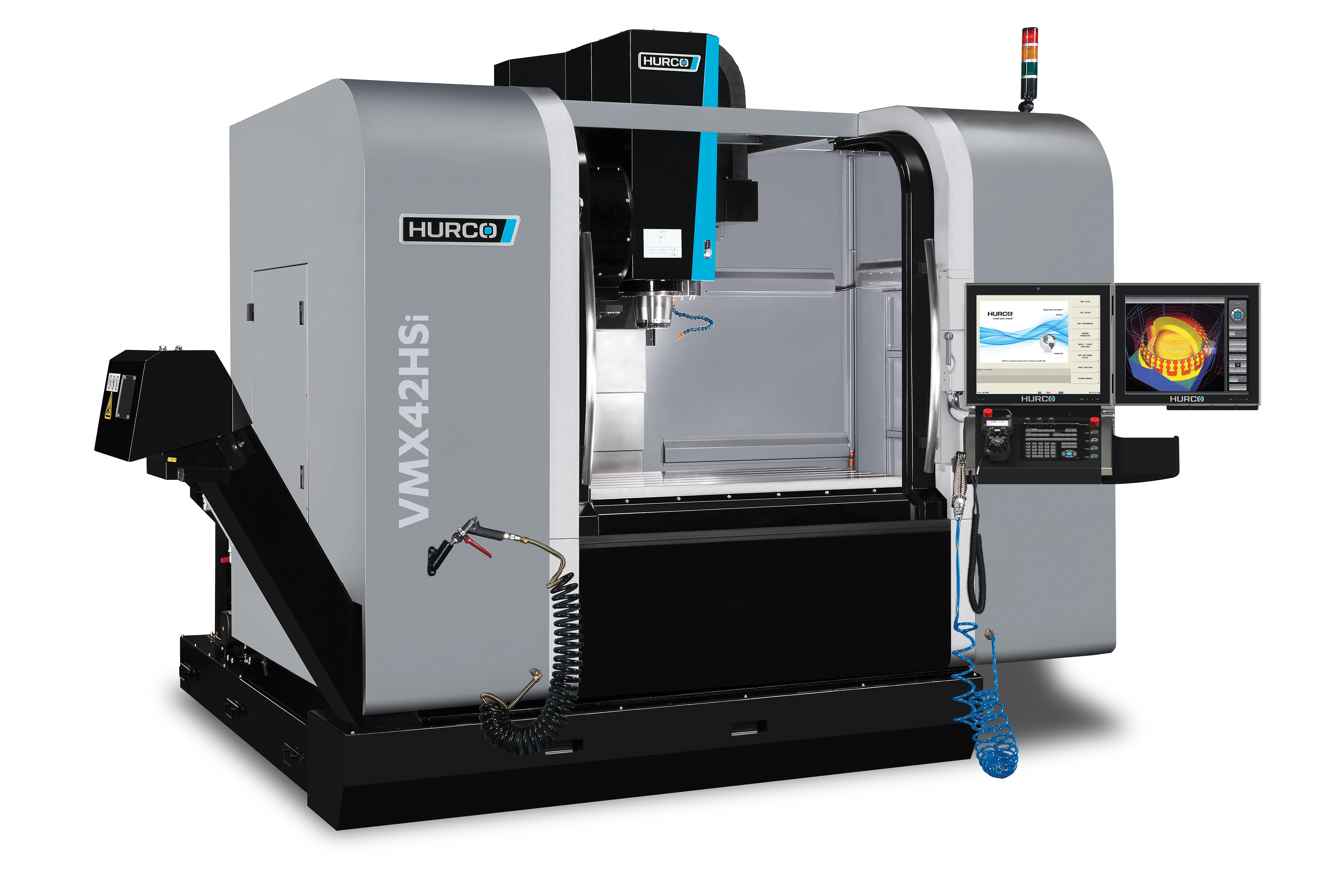

VMX 42 HSi

3-Axis-Machining Centers

Ideal high-speed machining for mold making

VMX 42 HSi VMX 42 HSi

Facts and figures

Table

Spindle nose – table (mm) 152 - 762
Table working surface W x D (mm) 1.270 x 610
T-Slots (DIN 650) 5 x 18 x 100
Load max. (uniform distribution) (kg) 1.750

Travels

X-Axis (mm) 1.067
Y-Axis (mm) 610
Z-Axis (mm) 610

Spindle

Spindle Taper (DIN 69893) HSK63A
Spindle Speed max. (rpm) 20.000
Spindle Power (kW) 35
Spindle Torque max. (Nm) 119


Feedrates

Rapid traverse X/Y/Z-Axis (m/min) 45 / 45 / 40

Automatic Tool Changer

Number of stations 40
Tool diameter max. (mm) 75
Tool length max. (mm) 300
Tool weight max. (kg) 7

Further details

Floor space required (mm) doors open, incl. control unit and chip conveyor 4.600 x 3.718 x 2.982
Machine weight (kg) 7.100
Content coolant tank (l) 484
Scraper type chip conveyor Standard

Information may change without notice. Optimum machine performance is reliant upon installation conditions at the facility, such as power supply, air supply, and ambient air conditions.
