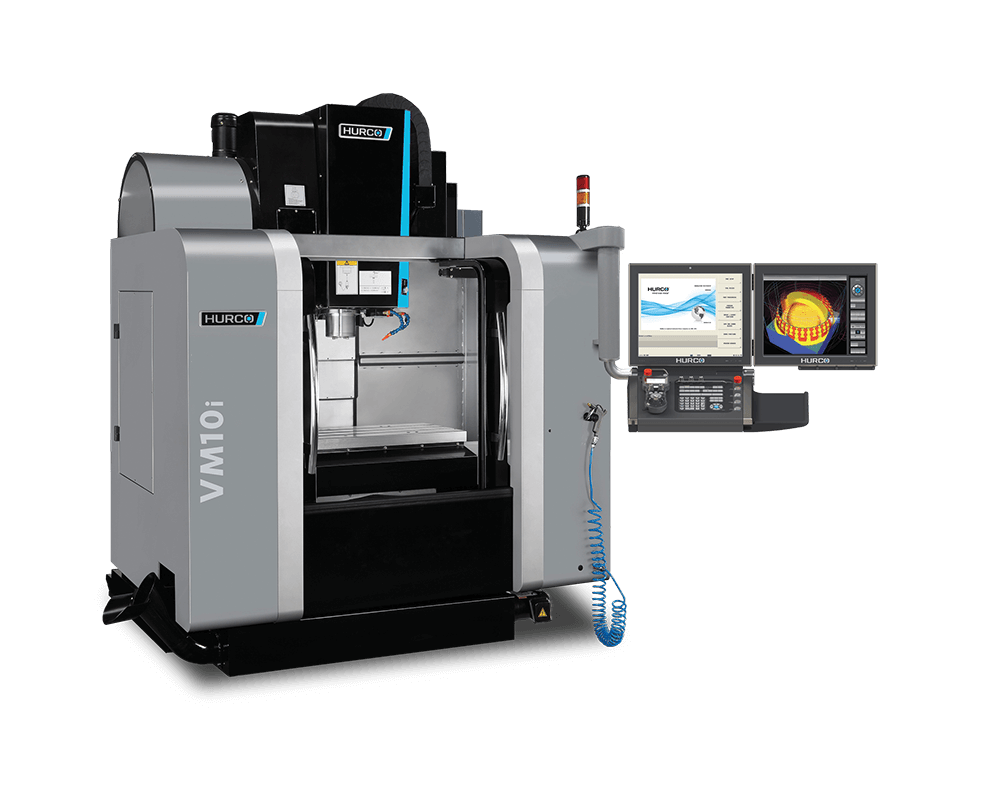

VM 10 i Plus

3-Axis-Machining Centers

The plus in display and technical features optimizes ease of use and efficiency.

Facts and figures

Table

Spindle nose – table (mm)	102 - 610
Table working surface W x D (mm)	762 x 406
T-Slots (DIN 650)	3 x 18 H8 x 100
Load max. (uniform distribution) (kg)	1500

Travels

X-Axis (mm)	660
Y-Axis (mm)	406
Z-Axis (mm)	508

Spindle

Spindle Taper (DIN 69871 A)	SK40
Spindle Speed max. (rpm)	12.000
Spindle Power (30min Rating) (kW)	11
Spindle Torque (30min Rating) (Nm)	61

Feedrates

Rapid traverse X/Y/Z-Axis (m/min)	28 / 28 / 28

Automatic Tool Changer

Number of stations	24
Tool diameter max. (mm)	80
Tool length max. (mm)	250
Tool weight max. (kg)	7

Further details

Floor space required (mm) doors open, incl. control unit and chip conveyor	3.264 x 3.384 x 2.564
Machine weight (kg)	2.850
Content coolant tank (l)	108
Chip auger	Standard

Information may change without notice. Optimum machine performance is reliant upon installation conditions at the facility, such as power supply, air supply, and ambient air conditions.
