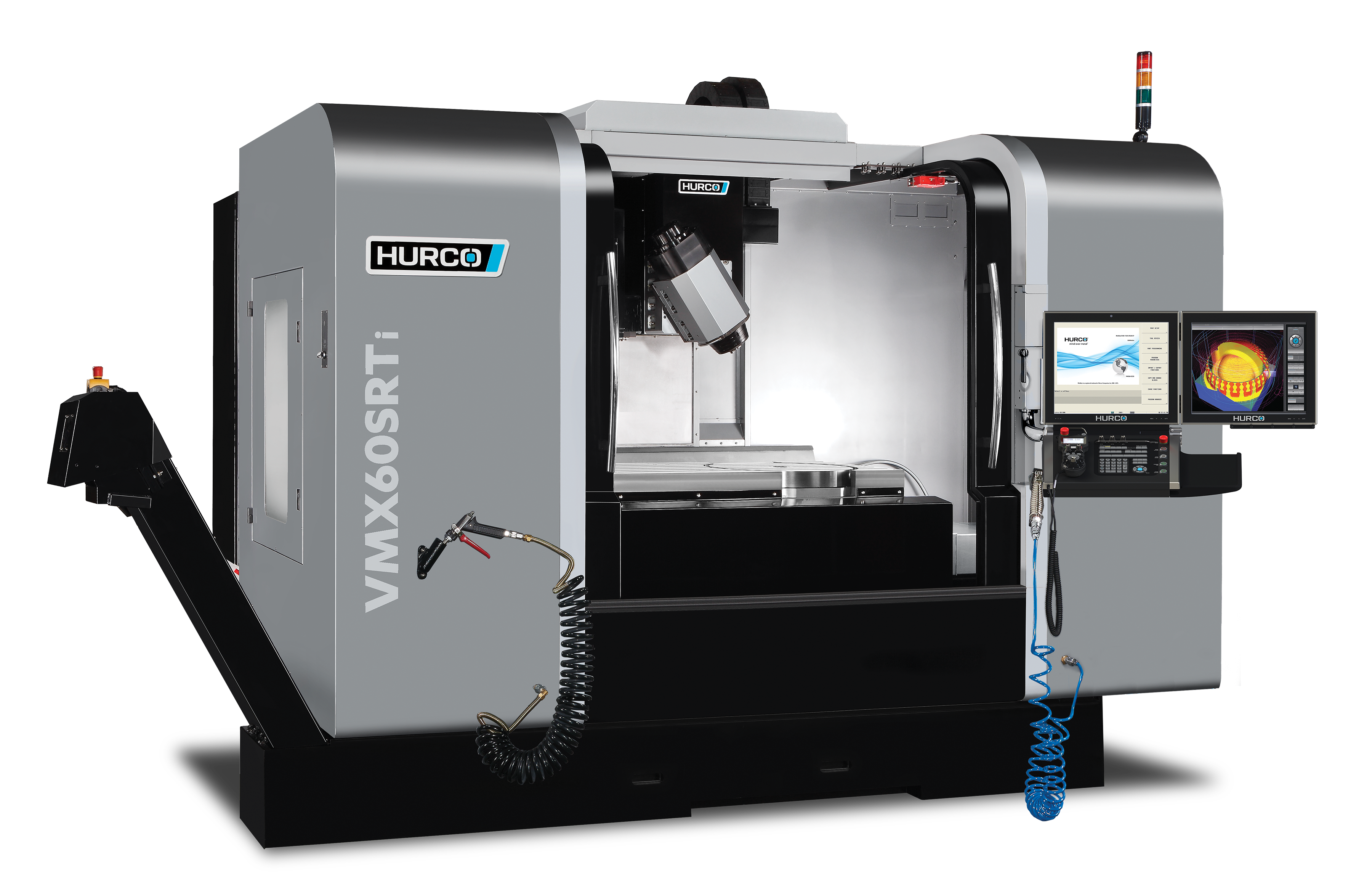

VMX 60 SRTi

5-Axis-Machining Centers

Huge travels and swivel head/ Rotary design for high-mix manufacturing.

VMX 60 SRTi VMX 60 SRTi

Facts and figures

Table

Spindle nose – table (mm) 12 - 622
Working Surface / Rotary-Diameter (mm) 1.680 x 660 / 600
T-Slots (DIN 650) 6 x 18 x 100
Load max. (uniform distribution) (kg) 1.360 / 500

Travels

X-Axis (mm) 1.524
Y-Axis (mm) 660
Z-Axis (mm) 610
B-Axis (°) +/-90
C-Axis (°) 360

Spindle

Spindle Taper (DIN 69871 A) SK40
Spindle Speed max. (rpm) 12.000
Spindle Power (kW) 36,5
Spindle Torque max. (Nm) 118


Feedrates

Rapid traverse X/Y/Z-Axis (m/min) 32 / 32 / 24
Rapid traverse B-/ C-Axis (rpm) 50 / 100

Automatic Tool Changer

Number of stations 40
Tool diameter max. (mm) 75
Tool length max. (mm) 250
Tool weight max. (kg) 7

Further details

Floor space required (mm) doors open, incl. control unit and chip conveyor 5.684 x 3.858 x 3.281
Machine weight (kg) 9.100
Content coolant tank (l) 807
Scraper type chip conveyor Standard

Information may change without notice. Optimum machine performance is reliant upon installation conditions at the facility, such as power supply, air supply, and ambient air conditions.
