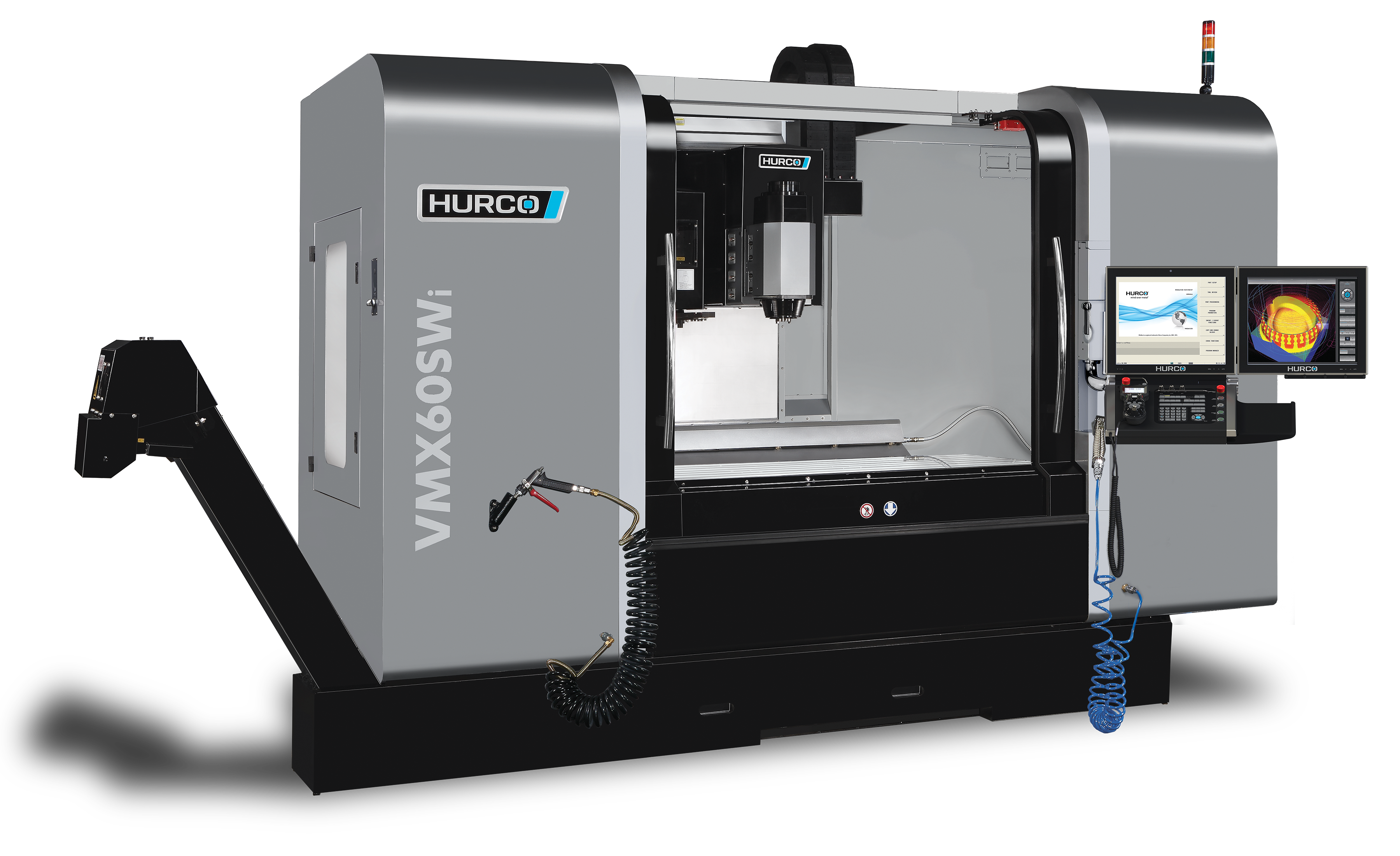

VMX 60 SWi

5-Axis-Machining Centers

Huge travels with swivel head and optinal rotary A-axis or C-axis.

VMX 60 SWi VMX 60 SWi

Facts and figures

Table

Spindle nose – table (mm) 102 - 711
Table working surface W x D (mm) 1.680 x 660
T-Slots (DIN 650) 6 x 18 x 100
Load max. (uniform distribution) (kg) 2.000

Travels

X-Axis (mm) 1.524
Y-Axis (mm) 660
Z-Axis (mm) 610
B-Axis (°) +/- 90

Spindle

Spindle Taper (DIN 69871 A) SK40
Spindle Speed max. (rpm) 12.000 / opt. 16.000
Spindle Power (kW) 36,5
Spindle Torque max. (Nm) 120


Feedrates

Rapid traverse X/Y/Z-Axis (m/min) 32 / 32 / 24
Rapid traverse B-Axis (rpm) 50
Cutting Feedrate X/Y/Z (m/min) 32 / 32 / 24
Axis Thrust X/Y/Z (kN) 22,7 / 22,7 / 35,3

Automatic Tool Changer

Number of stations 40 / 60
Tool diameter max. (mm) 75
Tool length max. (mm) 250
Tool weight max. (kg) 7

Further details

Floor space required (mm) doors open, incl. control unit and chip conveyor 5.606 x 3.930 x 3.378
Machine weight (kg) 9.900
Content coolant tank (l) 894
Scraper type chip conveyor Standard

Information may change without notice. Optimum machine performance is reliant upon installation conditions at the facility, such as power supply, air supply, and ambient air conditions.
