VM 20i

For complex machining operations
VM 20i

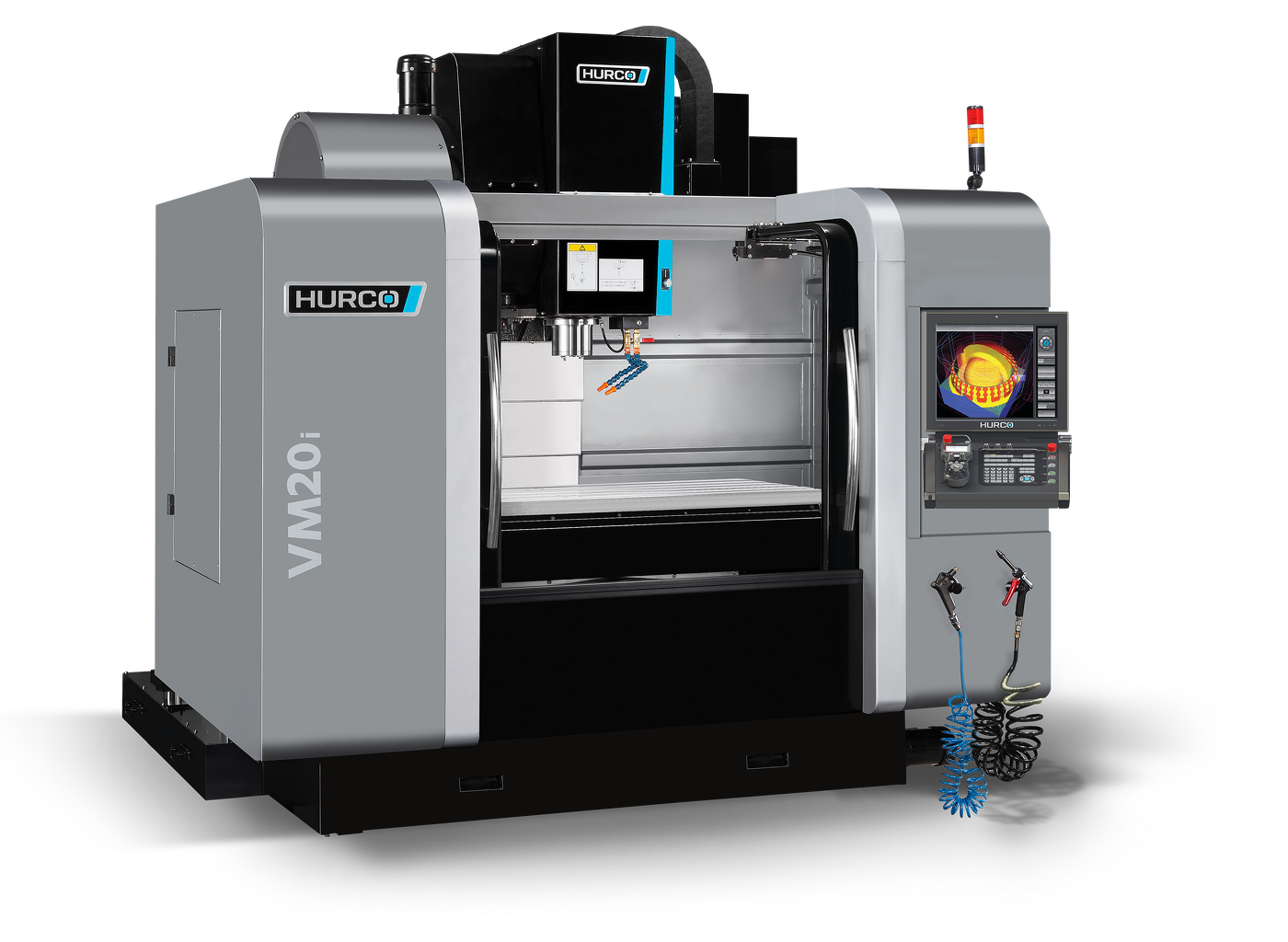

The HURCO 3-axis machining center with the unique traversing range for complex machining operations

Exceptional large travels for complex maching applications

Facts and figures


Spindle nose – table (mm) 102 - 610
Table working surface W x D (mm) 1.168 x 508
T-Slots (DIN 650) 5 x 18 x 100
Load max. (uniform distribution) (kg) 1800


X-Axis (mm) 1.016
Y-Axis (mm) 508
Z-Axis (mm) 508


Spindle Taper (DIN 69871 A) SK40
Spindle Speed max. (rpm) 10.000
Spindle Power (kW) 15
Spindle Torque max. (Nm) 99
Retention knob ISO 7388/II B


Rapid traverse X-Axis / Y-Axis / Z-Axis (m/min) 28 / 28 / 28

Automatic Tool Changer

Number of stations 24
Tool diameter max. (mm) 80
Adjacent sides empty (mm) 120
Tool length max. (mm) 250
Tool weight max. (kg) 7

Further details

Floor space required (mm) (doors open, incl. control and chip conveyor) 3.722 x 3.312 x 2.542
Machine weight (kg) 4.150
Content coolant tank (l) 122
Chip auger Optional
Information may change without notice. Optimum machine performance is reliant upon installation conditions at the facility, such as power supply, air supply, and ambient air conditions.
